We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.

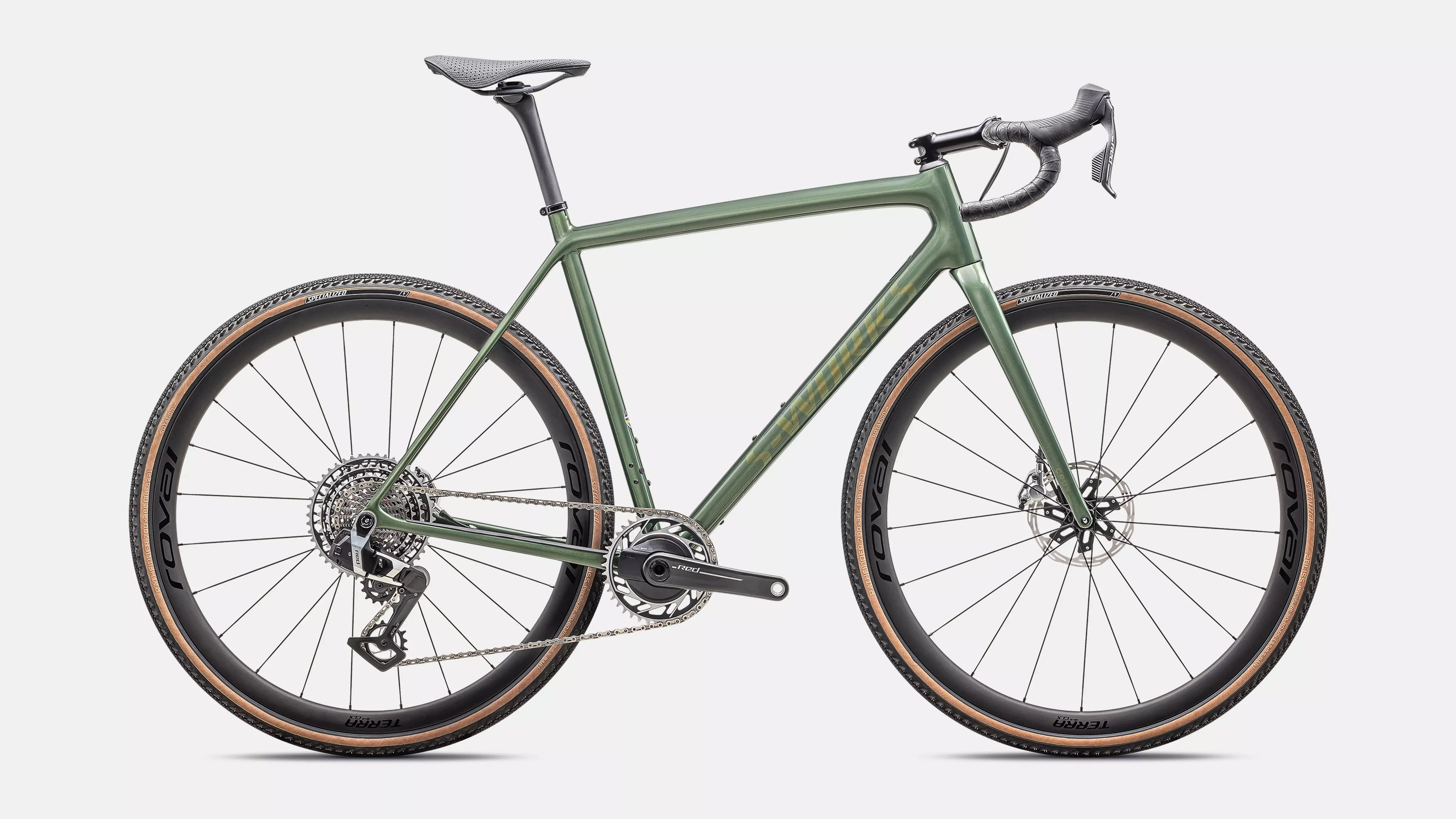

With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.
Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.
Specifications:
Frame | S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
Front Brake | NEW SRAM Red XPLR, Hydraulic Disc |
Rear Brake | NEW SRAM Red XPLR, Hydraulic Disc |
Shift Levers | SRAM Red AXS |
Rear Derailleur | NEW SRAM Red XPLR, 13sp |
Cassette | NEW SRAM Red XPLR, 13sp, 10-46t |
Chain | NEW SRAM Red XPLR, 13sp |
Crankset | SRAM Red AXS Power Meter |
Chainrings | 40T |
Bottom Bracket | SRAM DUB BSA |
Front Tire | Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
Front Wheel | Roval Terra CLX II, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes |
Rear Tire | Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c |
Rear Wheel | Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes |
Inner Tubes | 700x28/38mm, 48mm Presta valve |
Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |
Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
Tape | Supacaz Super Sticky Kush |
Saddle | S-Works Power with Mirror |
SeatPost | Roval Alpinist Carbon Seatpost |
Seat Binder | Specialized Alloy, 30.0mm, titanium bolt |
Product ID | 223480 |
Weight | 6.94 kg (15 lb, 4.8 oz) |
Weight Size | 56 |
